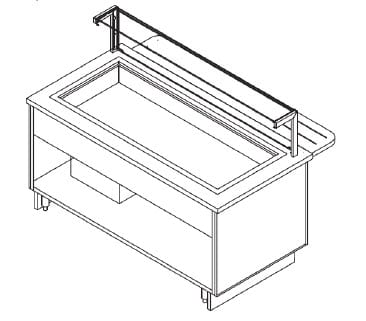

MODELS CLS30 THROUGH CLS96
► 12 standard sizes available
► TIGHT LINK™ (patented) interlocking mechanism eliminates vertical and horizontal gaps between counters.
► Durable, welded, 300 series stainless steel tubular frame.
► Available in 1 – 6 cold food pan models.
► Cold pans exceed NSF 7 with pans FLUSH with top.
► Interchangeable exterior panels match or complement any décor.
► Common tops available up to 18’-0”.
► All food shields 3/8” tempered glass panels to maximize merchandising.
► Interchangeable top configurations available.
► 8’ cord and plug.
Models
| Model | Dimensions L x W x H |
Number of pans in top | Electrical (standard 115V / 1 phase) | Plumbing Requirements |
|||
|---|---|---|---|---|---|---|---|
| Available | Std. | H.P. | Amps | NEMA | |||
| CLS30 | 30”x34”x34” | 1 | 1 | 1/3 | 7.6 | 5-15P | 3/4” waste |
| CLS36 | 36”x34”x34” | 1,2 | 2 | 1/3 | 7.6 | 5-15P | 3/4” waste |
| CLS42 | 42”x34”x34” | 1,2 | 2 | 1/3 | 7.6 | 5-15P | 3/4” waste |
| CLS48 | 48”x34”x34” | 1,2,3 | 3 | 1/3 | 7.6 | 5-15P | 3/4” waste |
| CLS54 | 54”x34”x34” | 1,2,3 | 3 | 1/3 | 7.6 | 5-15P | 3/4” waste |
| CLS60 | 60”x34”x34” | 1,2,3,4 | 4 | 1/3 | 8.5 | 5-15P | 3/4” waste |
| CLS66 | 66”x34”x34” | 1,2,3,4 | 4 | 1/3 | 8.5 | 5-15P | 3/4” waste |
| CLS72 | 72”x34”x34” | 1,2,3,4,5 | 5 | 1/3 | 8.5 | 5-15P | 3/4” waste |
| CLS78 | 78”x34”x34” | 1,2,3,4,5 | 5 | 1/3 | 8.5 | 5-15P | 3/4” waste |
| CLS84 | 84”x34”x34” | 1,2,3,4,5 | 5 | 1/3 | 8.5 | 5-15P | 3/4” waste |
| CLS90 | 90”x34”x34” | 1,2,3,4,5,6 | 6 | 1/2 | 12.0 | 5-15P | 3/4” waste |
| CLS96 | 96”x34”x34” | 1,2,3,4,5,6 | 6 | 1/2 | 12.0 | 5-15P | 3/4” waste |
