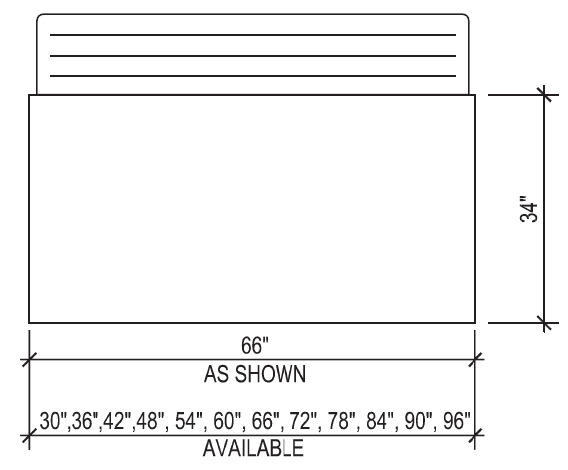

► 12 standard sizes available
► TIGHT LINK™ (patented) interlocking mechanism eliminates vertical horizontal gaps between counters.
► Durable, welded, 300 series stainless steel tubular frame.
► Interchangeable exterior panels match or complement any décor.
► Common tops available up to 18’-0”.
► Interchangeable top configurations available.
► Stainless steel finished interior back and sides.
Specifications: Short Form
Provide Multiteria model #LNL_____ to be constructed with heavy-duty welded stainless steel tubular frame. Countertop to be manufactured with 14-gauge, 300 series stainless steel with 1-1/2” top turndown. All welds to be ground and polished to provide #4 finish. Counter to have easily removable 3/4” laminated front and end. All millwork panels to have standard plastic laminate on front and white laminate interior.
Body Frame: Body to be welded and polished, 1” stainless steel tubular framework. Body frame made to readily accept 3/4” laminated panels to allow panel chang-ing without the use of tools. Body frame made to accept TIGHT LINK™ (patented) fastening system. Base to be open to floor to accommodate under counter buyout equipment. Undershelf depth to allow 4” clear open space for mechanical connections during installation. Unit shall rest on 6” high stainless steel legs with stainless steel adjustable feet.
|□ LNL30||□ LNL54||□ LNL78|
|□ LNL36||□ LNL60||□ LNL84|
|□ LNL42||□ LNL66||□ LNL90|
|□ LNL48||□ LNL72||□ LNL96|
Front & End Décor panels:
All millwork panels to have standard plastic laminate on front and white laminate interior. Panels shall be removable for access for service. Millwork end panels shall be removable without the use of tools.
Top shall be 14-gauge, 300 series stainless steel with 1-1/2” top turndown, and shall be removable to allow for service. Top shall include stainless steel support channels and shall be constructed to accommodate remodeling of the counter at a later date to accept an alternate material top without changing the work height.
TIGHT LINK™ (patented):
Furnish with linking system that links adjacent counters together the entire depth and height of the counter. Linking system shall eliminate top, front and rear horizontal and vertical gaps between equipment. Linking system to be open to allow mechanical connections to run through adjoining counters without having to cut access holes, reducing the number of building mechanicals required to connect equipment.
